MARKANT 650.
- Extended drawbar with dual drive shaft
- Slip clutch and shear bolt to protect baler
- Pick-up width: 1.85 m (DIN width 1.75)
- Pick-up height adjustment via control cable from the tractor cab (hydraulic optional)
- Tidy crop uptake with stronger pick-up, exactly the same as in the QUADRANT design
- Two strengthened dual crank feeders
- Power-saving pull cut, with flat rams for better bale shape
- High baling density with heavy, robust rams and bale chamber
- High performance with new linkage geometry
- Shaft drive for feeders, knotters and needle, with capacity for ten reels
- Reliable all-twine knotter
- Integrated maize kit as standard
- Specifications.
MARKANT Pick-up width m 650 1.85 MARKANT DIN width m 650 1.75 MARKANT Crop feed 650 Crank feeder conveyor MARKANT Ram strokes rpm 650 93w MARKANT Bale chamber dimension
Length x width x height
m 650 1.10 x 0.46 x 0.36 MARKANT Bale length m 650 0.40 – 1.10 MARKANT Recommended power requirement kW (hp) 650 44 (60) MARKANT Number of knotters 650 2 MARKANT Number of twine reels in the twine box 650 10 MARKANT 650 Pick-up width m 1.85 DIN width m 1.75 Crop feed Crank feeder conveyor Ram strokes rpm 93w Bale chamber dimension
Length x width x height
m 1.10 x 0.46 x 0.36 Bale length m 0.40 – 1.10 Recommended power requirement kW (hp) 44 (60) Number of knotters 2 Number of twine reels in the twine box 10 Tyres Left 11.5/80-15.3 6 PR Tyres Right 10.0/80-12 4 PR Tyres Left 11.5/80-15.3 6 PR Right 10.0/80-12 4 PR Dimensions Length mm 5490 Dimensions Width mm 2735 Dimensions Height mm 1880 Dimensions Track width mm 2440
Dimensions Length mm 5490 Width mm 2735 Height mm 1880 Track width mm 2440
PU options Hydraulic / hydraulic ○ PU options Drawbar / guidewheel ○ PU options Hydraulic / hydraulic ○ Drawbar / guidewheel ○ Weight Tare weight kg 1600 Weight Tare weight kg 1600

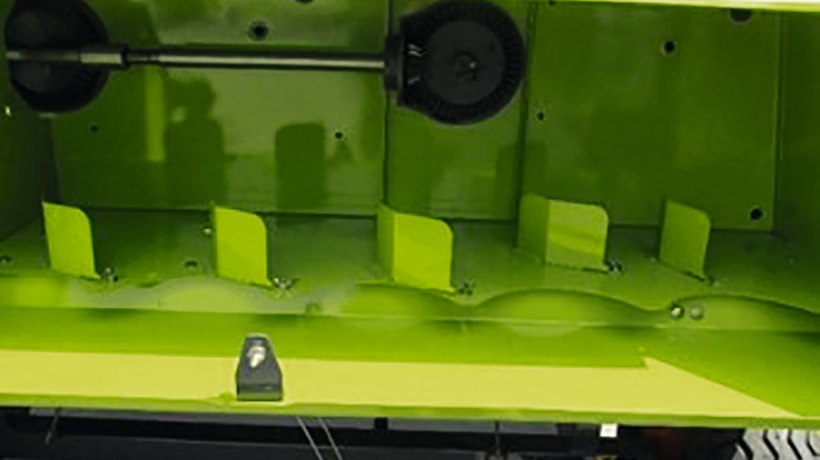

Twine box.
- New twine box with capacity for ten reels
- Better access to the ten reels

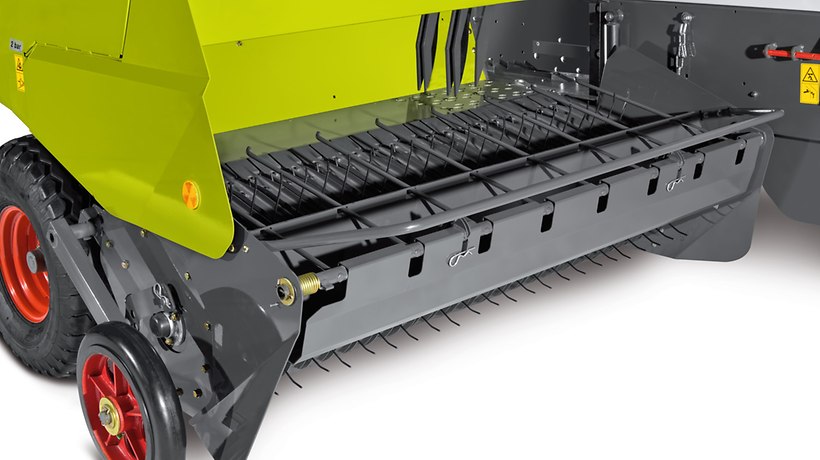

Strengthened pick-up.
- NEW: strengthened pick-up, for working in any conditions
- QUADRANT concept for MARKANT balers
- Controlled pick-up for longer service life
Improved bale shape.
- New ram shape for firmer bales
- New linkage geometry for better bale appearance

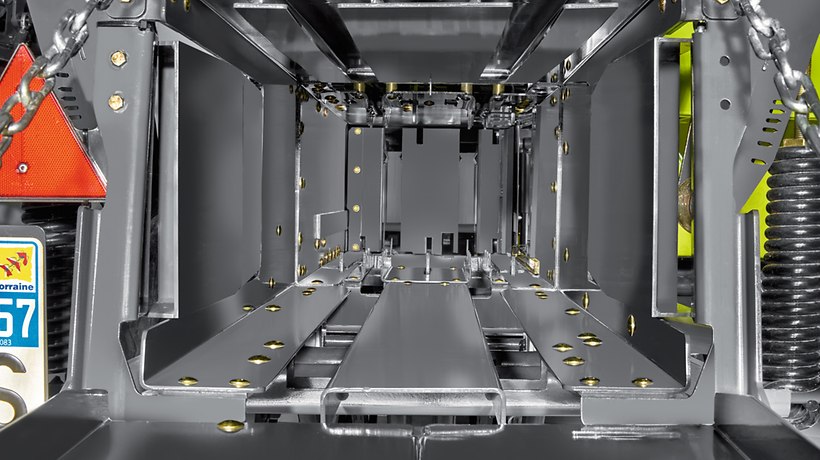

High compaction.
- The new bale chamber shape enables the MARKANT to produce heavier bales
- More kilos per bale mean more tonnes per truck, for lower transport costs
